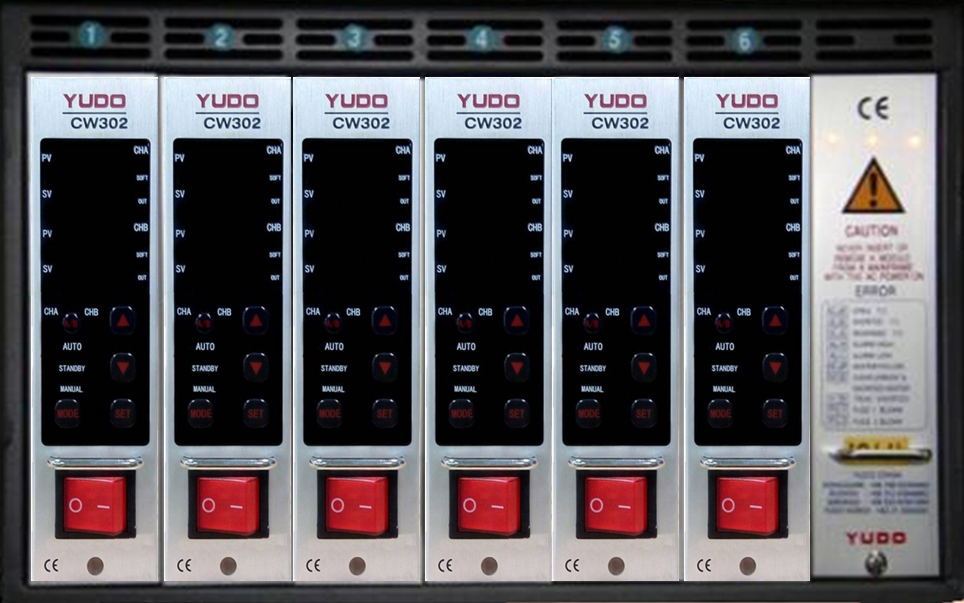

CW202 CW302
Compact monoblock controllers for temperature controlling of hot runner systems in the range from 0 to 400 degrees. The number of control zones is from 2 zone to 96 zones. YUDO controllers have high efficiency, wide functionality and high reliability. Controllers supplied with cable and connectors. Thermocouples of any type is supported, controllers provide the function of soft start and the diagnosis of GCS. The main difference from the series CW201/301/662 is the fact that one module controls two zones.
- Input voltage 85-250V/380V
- Thermocouple types – J/K

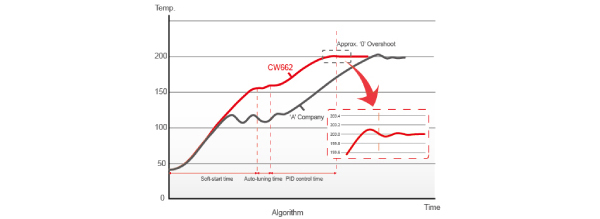

- Method of temperature control – PIDD
- Working temperature -10+50 ⁰ C
- The control accuracy ±0,1 ⁰ C
- Temperature of controlling – 20-400⁰С
